May 4, 2016, officially launched the second-generation Super Body TV, which is known as the world's first VR TV. About this VR TV evaluation and experience article I believe many readers already know, but what is the difference between the first VR TV and other TVs? How about the internal panel and the core product? The value of 2699 is not worth it? With these questions , sofa Xiaobian will reveal the answer for you. 1/28
The Storm TV Super TV 55X uses a split design to support subsequent split upgrades. VR-TVOS system can support TV content and VR panorama content at the same time, and achieve TV and VR head display interconnection. 2/28
This is what we disassembled the Storm TV Super TV 55X. According to its official data, the Storm TV 55-inch uses LG's IPS hard screen. Panel information is also one of the focuses of the TV. 3/28
Choosing a flat surface before dismantling facilitates the placement of the desktop for easy disassembly while protecting the TV panel. 4/28

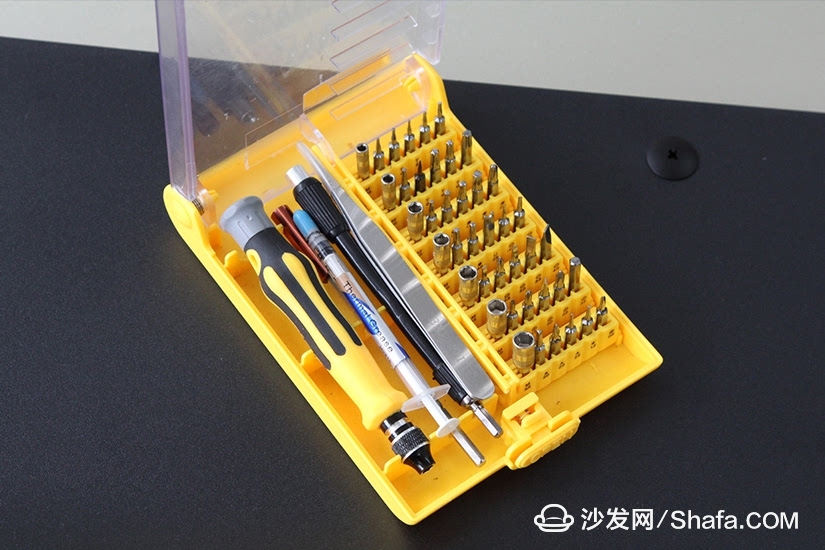

Workers must first sharpen their tools and choose good dismantling tools to achieve a multiplier effect. 5/28
After disposing, disassemble and select the corresponding screwdriver to disassemble them one by one. Relatively speaking, the corresponding screwdriver can be selected without any effort to remove the screw. 6/28
More screws, continue to proceed. Small screws need careful attention to avoid scratching the frame and the back of the TV. 7/28
The last moment was revealed, the plastic backplane was uncovered, and finally the internal details of the Storm TV SuperTV 55X were seen, but because of the power cord, only part of it could be seen. 8/28
After dismantling the final step, the details of the internal structure of the Storm TV Super TV 55X can be revealed. This article refers to the address: http://
After the backplane was lifted, the internal structure was simple, and the symmetrical design was adopted. The layout of the lines was clear and the workmanship was fine. 10/28
Let's take a closer look at one of the TV's circuit boards. The circuit board is mainly set up for the TV's external interface and is also the host for split-TV upgrades. 11/28
The upgradeable host is relatively simple in the disassembling process. After all, it cannot be too complicated in the future upgrade process, making it difficult for users to start. 12/28
The advantage of the split type is that after the TV upgrades the hardware, only the internal motherboard needs to be replaced to improve the TV performance without having to replace the entire TV host again. 13/28
HDMI high-definition interface and USB3.0 interface, as well as ordinary USB interface. 14/28
LCD drive master IC, produced by LG Display, the specific model is TLi2386EP15/28
Black board design, a variety of components above the decentralized arrangement, more sophisticated workmanship. 16/28
One of the components details 17/28
Component details of the second 18/28
The details of the components of the third reference address: http://
Component details of the four 20/28
Storm TV Super TV 55X adopts a built-in sealed reversed-type large-acoustic stereo, imported PEI diaphragm. 21/28
The more well-known South Asian memory chips are produced in Taiwan. 22/28
Lines will be fixed with double-sided non-adhesives at regular intervals, and it takes a certain amount of time to pull them. 23/28
Embedded design, the cable is connected to the motherboard. 24/28
Here the black red button is the power switch button. 25/28
The details of the LCD module depend entirely on this long circuit board. 26/28
These are all the motherboards that are finally dismantled. This is enough to prove that the Storm TV Super TV 55X is concise and there are no extra components and cables. 27/28
Storm TV super TV 55X back panel is to remove all components except the speakers, the internal circuit layout is reasonable, fixed cable firm, details of fine workmanship, worthy of recognition.
There are good hardware and display effects, of course, with a rich content resources, the combination of software and hardware can play the greatest value of a TV. In terms of content, it is recommended to install a sofa butler - the sofa butler is a third-party app store designed specifically for smart TVs, Android box users, carefully providing television, box users with high-quality television exclusive version of the application, including with live Or on-demand video and audio and video software, various types of recreational competitive video game software, and daily office entertainment management system management tools. Storm TV TV 55X installation method
