Recently, according to the Ruilong platform he used before, he helped a person install a similar machine. The opponent's request is all-round type (games, video editing), the price is controlled within 8K, and the final installed program is also considered to be a reference machine recently, so I sent it to you for reference.
CPU: Ryzen Rui Long 5 1600
Motherboard: ASUS Prime B350-PLUS (kit 2079, dual 12 can be opened up to 2K)
Graphics card: GTX1060 6G (note the general price around 1899 OK brand can buy)
Memory: Zhi Chi Magic Light DDR4 3200 8GX2 (1599)
SSD: Liteon Speed ​​Series T11 256G (679)
Chassis Cooling: Kyushu Aeolus (749)
Power Source: XFX XTR550 (479)
HDD: 2T HDD (479)
Total price: about 8K
Other: CPU +300 can be changed to 1600X, +550 becomes Ruilong 7 1700, personal advice if the budget is not too dead card, you can choose Ruilong 7 1700 according to the actual price, after all, is one of the most cost-effective recent U And hundreds of pieces went straight to another level. .
Positioning: Medium-high-performance all-round host (U can overclock 3.8G, memory can be overclocked to 3000+), game entertainment, productivity applications (retouching, video, rendering) all have a good experience; recent and future upgrades are nothing more than plus Full memory, upgrade the graphics card to continue fighting for three years.
From this time on, I will also use this experience to install a score (a system of points) on the platform configuration for everyone's visual reference. Whether the score is a subjective judgment or not is objective.
DIY difficulty: 7 points. The main chassis installation requires a little attention to the power supply installation.
Cost-effectiveness: 7.5 points. CPU motherboard set cost-effective, but the graphics card is too high value, plus the current high memory, ssd.
Performance: 7 points. Can smoothly run the current market 1080P games (all special effects), and 1440P-level games need to set their own optimization; productivity applications have a relatively good operating experience, if you want to further upgrade you need to upgrade the CPU to Ruilong 7 and full memory.
The day and night appearance of the complete machine. The box is a friend's own choice, there is a certain personalized appearance needs (mainly is the side through + decorative lights), my side to do is to choose the full black box (Baron this box has a black version and Panda color) The consistency of the whole machine is better. The whole box containing the fan actually supports the AURA lighting effect control of Asus Home. . . The motherboard itself does not support it. . . (Only supports the lighting control of the amd radiator), this is somewhat embarrassing, but fortunately the part that the whole machine can shine is acquiesced by default, also can compare with the sharp dragon platform that oneself chooses. Here is also to remind everyone that there are lighting needs of the current best selection of their own support for light control of the motherboard, and lighting accessories (fans, etc.) in addition to supporting the corresponding brand light control system, it is best to buy a unified brand, so that color The difference is not too great and the light consistency is better.
The front said that this machine is actually equipped with a certain degree of difficulty, and the difficulty is mainly in the Kyushu Fengshen Baron this too host. The Kyushu Aeolus, who plays the addiction to water, set the chassis to be the setting of the chassis + integrated RGB water-cooled + visible flow meter. Before the other models (such as viruses, Piaget, etc.) in their home were all set This positioning and setting is also very smart for their user base. After all, as much as possible to control the installation cost to achieve closer to split water cooling visual effects.

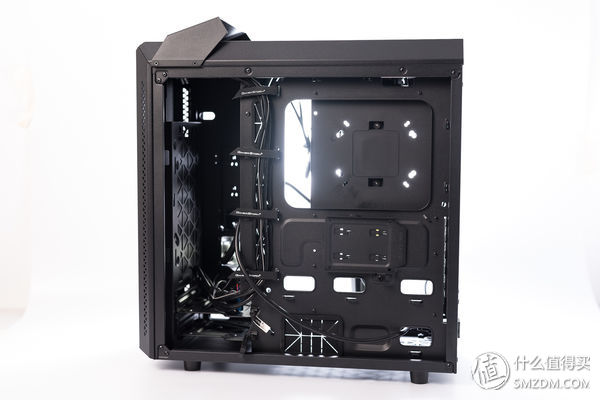

The special point of this machine is that the traditional power supply position still remains, but the power supply can also be installed in the traditional optical drive position, and then install the inlet fan at the bottom, so as to realize the vertical air duct system; after the whole machine is installed, The volume size is relatively compact and is basically equivalent to the MATX specification brand machine.
But personally think that this box idea is good, but Kyushu Fengshen is obviously not enough paranoid, that is, this box is mainly based on the MATX motherboard structure, but it is compatible with ATX (with 1.2 slots can not be installed). And this is also due to the consideration of one more power supply installation bit (traditional bit), the actual manufacturer should be paranoid to directly select the vertical air duct installation mode, not compatible with the traditional power supply bit, and then the motherboard structure is still a complete ATX installation, and can further reduce height. Having said so much, it is estimated that you will see the picture more clearly.
Because the whole machine has 6 light bodies, the light link is also a headache. It's not a bad idea to go backwards because it's a good design for route control. The XFX XTR550 power supply is also considered to be a cost-effective full-module gold medal, and the original line can actually be a good solution.
One-piece water cooling is also a good idea for new players. This box contains the water cooling system price 7xx, counting the price of water cooling itself 3xx, the box is actually three or four hundred; the water-cooled part actually has no functional castration compared to the retail version, the cold head and the fan are RGB to support AURA lighting effect. Version. Cooling effect I believe everyone is also very curious, Rui Long 5 1600X overclocking 3.9G full load of five or sixty degrees, and pressurize to more than 1.5v voltage 4G, fully loaded at about seventy degrees, for a 120 cold row is also considered ideal of.
The power supply does not have a bottom, then two fans are installed and it becomes a vertical air duct. Old players should know the thermal efficiency of vertical ducts
Visual flow meter, for some people, turning on to see this rotation is also quite fun.
Side penetration is still a large glass.
A handle (metal) is designed on the top for easy handling and removal. In addition, the three points at the top are actually the lighting controls (colors, switches) of the original water-cooled part of the chassis. If manufacturers can reserve a few more slots for compatible control of the fans installed on the chassis, even if they can only support their own very good.
The effect of luminous
ASUS PRIME B350-PLUS:
There was nothing special about my first feeling on this board, but it was surprising to actually use it. The surprise is that this board can exceed 4G, memory 3200 does not roll over (BDIE) These personal feelings compared to other features will be more attractive to hardcore gamers.
Personal test with 1600X + Zhiqi's magic, U 1.3x achieve 3.8-3.9, 1.5v + 4G; and the magic 3200, although because of the use of BDIE particles, so in general, Ruilong platform compatibility will be better , But I personally measured a lot of B350/X370 is still not easy to over 3000 +, and ASUS this board after refreshing the new BIOS, actually easily on the 3200, other memory because it was too late to try, there is no specific instructions.
U: Rui Long 5 1600X, initially thinking about simply not overclocking so choose a high-frequency X, but did not expect the motherboard itself overclocking performance is also good.
Kyushu Fengshen Baron chassis with the magic ring fan: front of the description of the chassis should be quite a lot, and here I add the positioning of this box. For hardcore players, this built-in water-cooled box may not be of interest to them, but the box itself is not very familiar with the kind of water cooling, but hopes to achieve similar control of costs (monetary costs, installation costs) to achieve similar The effect of the user. Compared to the common chassis + one water-cooled combination, baron this box also added a visual flow meter, which will undoubtedly increase a visual fun, and later I saw the real effect is indeed achieved. The installation of the complete machine (including water cooling) is also difficult to accept. The biggest difficulty is that the power supply is in a different position. Therefore, the cabling habits must be properly changed. In addition, if there are many fans, the control line must be installed. As for the built-in water-cooled cooling effect, first of all, the visual effect of the cold head is indeed excellent, and the heat dissipation performance is also good. If there is any suggestion, it's a bit ridiculous idea to say that I would rather be more expensive, but the box optimization is better, and the quality is better, not a new type of PC DIY game (such as upgrading the quality of water cooling configuration , Cabinet design and detail enhancement).
As for the magic ring light fan set, compatibility is OK, the mainstream of the Taiwan Department of motherboard light control system can support, that is, the whole set up will be more complex.
Performance Testing:
The test part mainly uses the CPU 4G frequency, memory 3200+ test, actually measured after the overclocked 1600X is really like the small steel cannon, the R15 score even starts to be close to the same frequency of six nuclear 12 thread's default frequency 8700K. The graphics card is partially matched with the Asus GTX1060 6G. The stability performance of the game is still relatively good, and the power consumption ratio is also better. However, the GTX 1060 6G has been released for more than a year. It is actually not worth a pip but it is also amazing.
Theoretical testing
Game Measurements: This side is still testing chickens (negative optimization game) as a reference for popular games, while GTA5 and OW (optimal optimization) are referenced as traditional classic games.
Although the GTX1066 and R588 sweet dessert cards can actually challenge 1440P-level games under the optimized picture, the individual still prefers to deal with the 1080P-level picture quality, because it is more relaxed and the average number of frames is higher, and it is also better with the current high Refresh rate monitor.
"Chicken" 1080P resolution, anti-aliasing texture, the extreme line-of-sight, the average number of frames is about 70, the number of frames is very stable.
GTA5 1080P resolution, extreme picture quality, the average frame can also be more than eighty smooth.
OW 1080P resolution, extreme picture quality, the average frame is about 110 (in front of the options menu, so the higher the number of frames, the latter half is the game), can deal with 100 + refresh rate monitor.
In the end, the vision of the whole machine is still relatively online, and friends are very satisfied with the performance of the vision and the final implementation. Even the individuals do not care much about the flow meter, but in the end it actually looks quite funny (as long as The boot state has always been rotating), and there may be many so-called high-end hardcore players who don't see this style of machine (preferably cold), but because of the recent rise of eSports games, I really see a lot of them. Soft sister really installed this style of host. . . So just be happy.
Xiaobian Note: The author of this article @Tiger5G is worth buying home, there are other questions welcome to contact his personal media information for:
Weibo: Tiger5G, Weibo address (http://weibo.com/Tiger5G).
